Urban lighting is one of the most important factors in enhancing visual identity and beautifying public spaces. Lighting projects not only add a special effect to the environment, but also become a cultural and social symbol of cities. In this regard, the Malard City Entrance Element Project, as one of the most prominent lighting designs, has been implemented with a combination of Islamic art and modern technology. This structure, in addition to providing light and beauty, is considered a sign of the culture, authority, and dynamism of the city of Malard.
Introduction to the Malard City Entrance Element Project

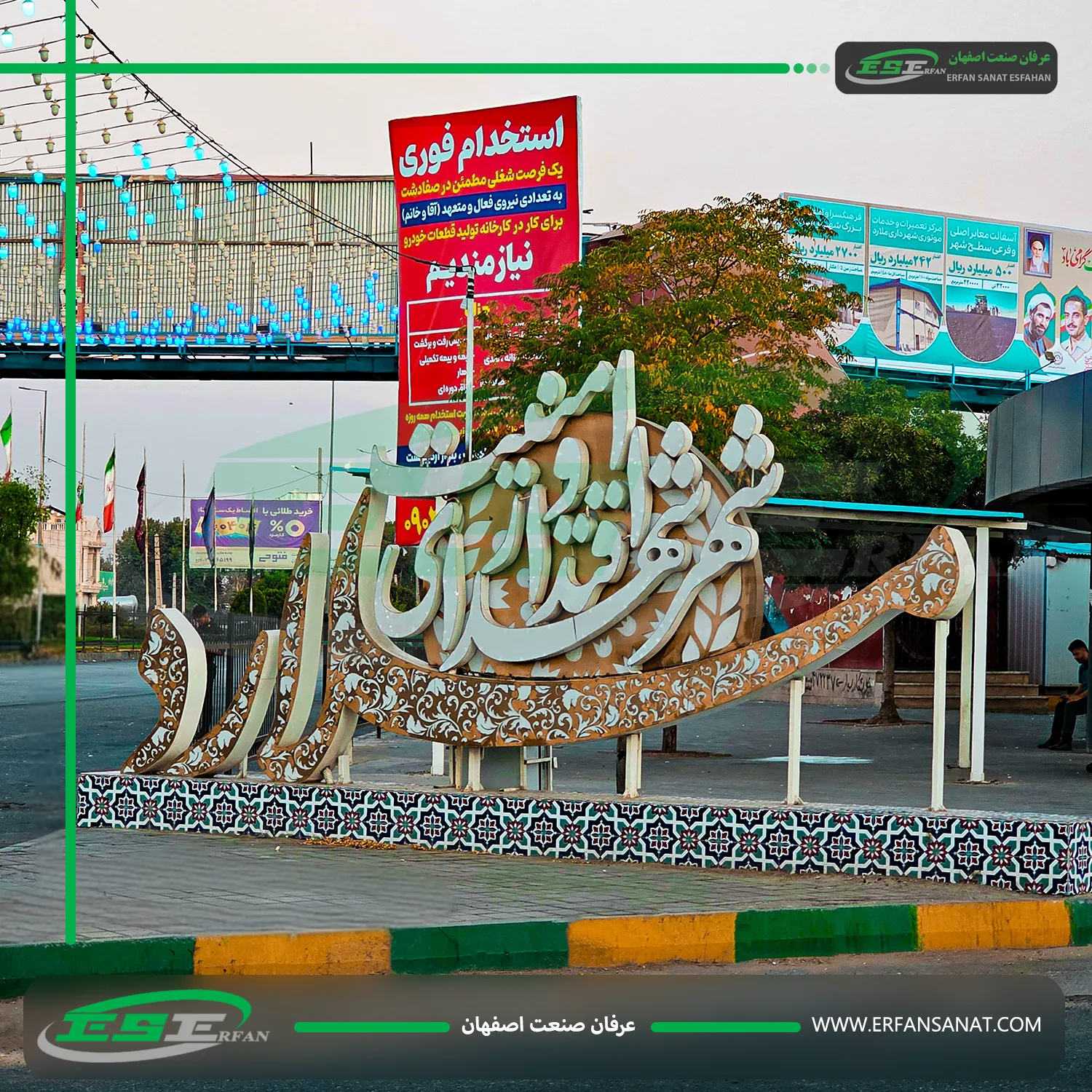

This light element, with dimensions of 3 meters in height and 6 meters in width, has been installed at the entrance of Malard city. Its special design, a fusion of Islamic motifs and modern lighting techniques, has made this project not just a functional structure, but a work of art that catches the eye of every passerby and traveler. This project was executed by Erfan Sanat Isfahan Company, which has a brilliant history in designing and manufacturing urban light elements.
Structure and Design
The main bases of this element are made of a sturdy metal structure, constructed with 10×10 cm hollow sections with a thickness of 3 mm. For different parts of the structure, metal sheets with thicknesses of 1.5 and 2 mm, as well as transparent plexiglass sheets, have been used. All components, after precise CNC operations and painting, were assembled in such a way to form a resistant, durable, and eye-catching structure.
Two prominent titles on this element are the phrases “Malard” and “City of the Martyrs of Authority,” which, with their special design and unique color combination, showcase the social and cultural identity of this city.
The Role of Islamic Motifs in the Malard City Entrance Element

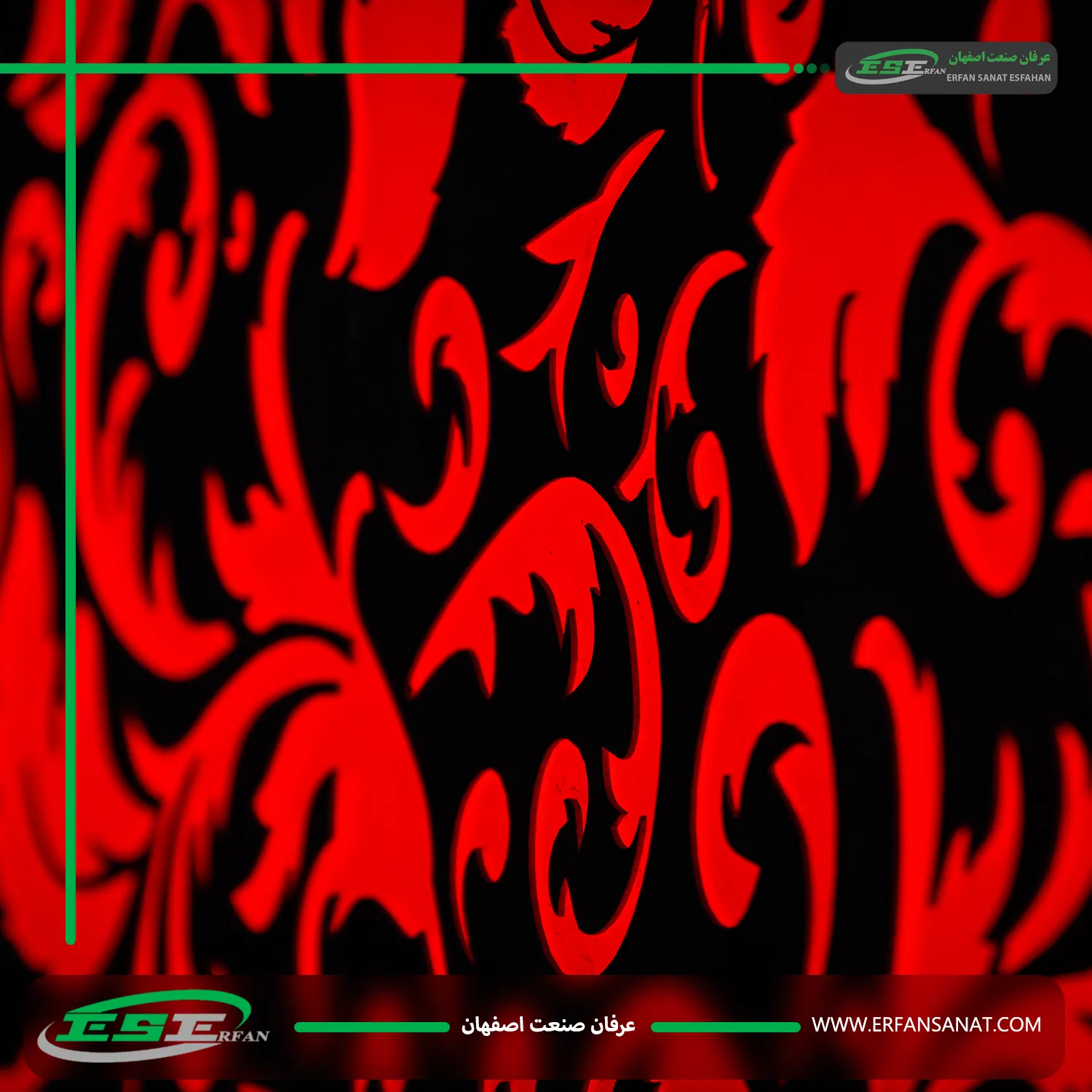

One of the distinctive parts of this project is the use of Islamic motifs in the background and decorations of the element. These designs, rooted in Islamic art and authentic Iranian architecture, have given the structure an artistic and cultural significance in addition to its urban function.

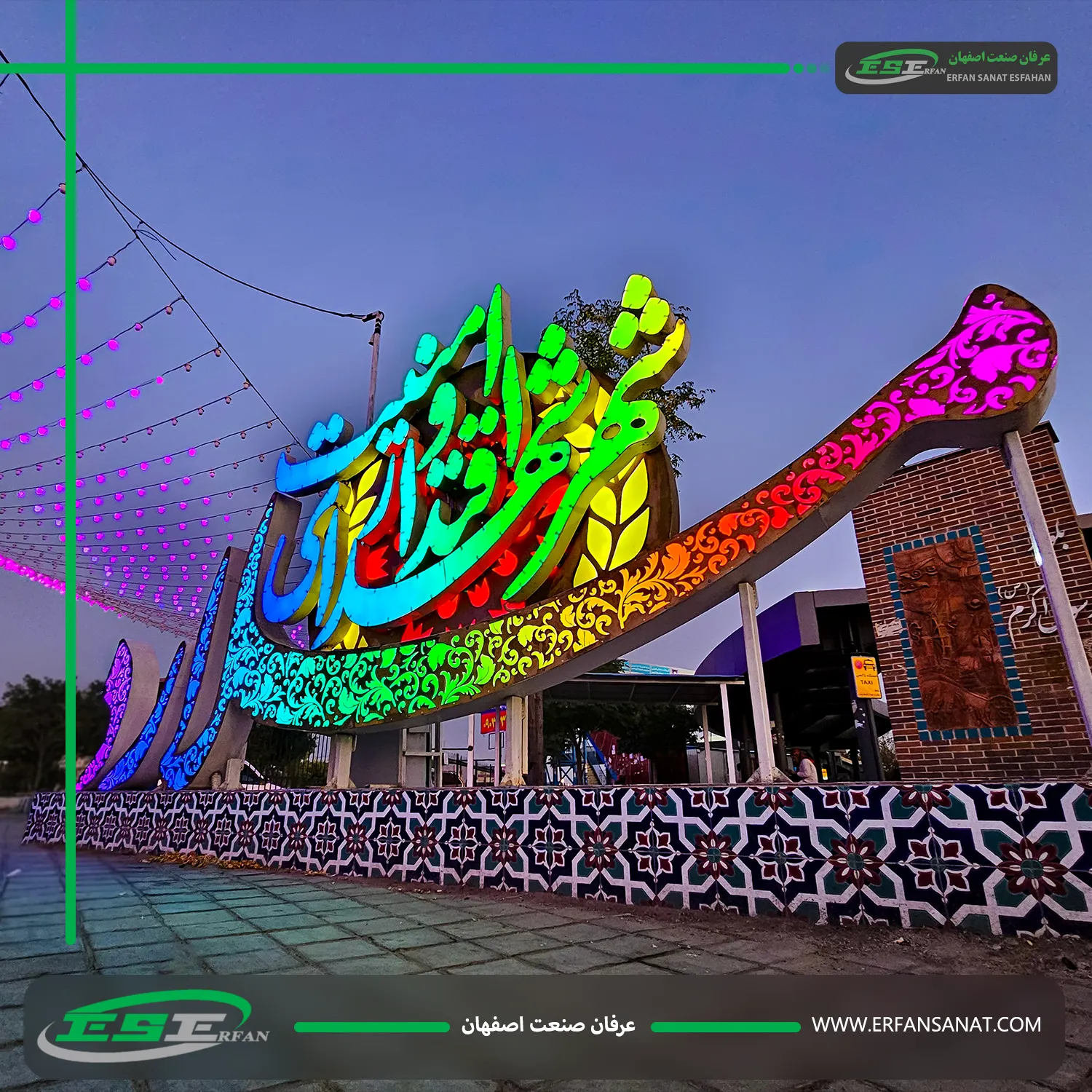

The combination of these motifs with full-color lighting has created a lively and dynamic atmosphere that becomes twice as impressive at night. The presence of Islamic motifs in the Malard city entrance element project demonstrates the link between traditional Iranian art and modern technology.
Lighting System
For this project, 300 units of 4 cm full-color pixels were used, capable of producing over 16 million colors and executing various effects. These pixels were designed and installed with the following features:
- 4 cm diameter, 24-volt voltage, and 1.5-watt power consumption
- IP67 protection rating for resistance to rain and weather conditions
- Sealed with industrial resin and a UV-resistant polycarbonate body for protection against sunlight
- Ability to fully control light and effects via an Android application
- 18-month warranty and 5-year after-sales service
These features have ensured that the lighting of this element is not only beautiful but also highly durable and long-lasting.
Central Box and Control System
One of the technical and advanced parts of this project is the 16-output, 24-volt smart central box. This system is capable of storing and executing pre-set programs as well as custom programs. Its key features include the following:
- Remote control capability using the internet and a SIM card
- Wireless networking capability for synchronizing multiple structures simultaneously
- Changing the speed, direction, and type of effects without needing to disconnect power
- A separate fuse for each circuit and protection against power fluctuations
- A metal body with complete sealing and an air circulation system to increase the device’s lifespan
This smart system has made the lighting of the Malard city entrance element project not only visually appealing but also technically reliable and advanced.
Low Energy Consumption and High Efficiency
One of the most important features of this project is the use of modern technologies in energy consumption. The full-color pixels used in the entrance element, despite their high power and light variety, have very low consumption and are optimized to use the least amount of electricity. This ensures that while creating eye-catching lighting and visual effects, the financial burden and energy consumption of the city are minimized. In fact, this element is an example of the integration of art, beauty, and sustainable technology, which has many advantages for both the environment and urban management.
Cultural and Social Significance
This project is not just a lighting structure, but is considered a symbol of the authority, identity, and culture of Malard. The presence of the phrases “Malard” and “City of the Martyrs of Authority” in the design is a reminder of the social and historical values of this city. The combination of modern lighting with Islamic motifs has created a space that has both a cultural aspect and adds to the visual beauty of the city.
The Malard City Entrance Element project is a successful example of the integration of art, engineering, and technology in urban lighting. With its special design, advanced full-color pixels, smart control box, and use of Islamic motifs, this element has not only beautified the city entrance but has also created a lasting identity for its citizens.
By implementing this project, Erfan Sanat Isfahan Company once again demonstrated its capability in designing and executing urban light elements and took a valuable step towards enhancing the urban landscape.
If you are also looking to implement creative urban lighting projects and want to give a unique look to your public or private spaces, the expert team at Erfan Sanat Isfahan is ready to provide consultation and custom design.
For more information about the Malard entrance lighting project and other modern lighting designs such as Islamic elements, Sun Light, and light trees, contact us today and take the first step towards creating a brilliant and different city.
Frequently Asked Questions about the Malard City Entrance Element
1. What are the dimensions and structure of the element?
The element is 3 meters high and 6 meters wide. The bases are made of durable metal, and other components include metal sheets and transparent plexiglass, which form a sturdy and eye-catching structure after CNC operations and painting.
2. How does the element’s lighting system work?
The element is equipped with 300 full-color pixels capable of producing over 16 million colors and executing various effects. These pixels are resistant to rain and sunlight and can be controlled via an Android application.
3. What is the energy consumption of the element?
The full-color pixels are designed with low power consumption, so despite their high brightness and varied effects, they have very low electricity consumption and are optimized.
4. What features does the element’s control system have?
The 16-output, 24-volt smart central box has the ability to store and run default and custom programs. Remote control, wireless networking, and changing effects and speed without needing to disconnect power are features of this system.
5. What is the durability and warranty of the element?
The pixels are designed with an IP67 protection rating and come with an 18-month warranty along with 5 years of after-sales service, thus having high durability and longevity.
