The interactive smart play element CANDO

The interactive smart play element CANDO is a smart lighting system designed by Erfan Sanat Isfahan Company that combines dynamic lighting art with a joyful and competitive experience. This 8-meter system includes 10 small beehives (with full-color RGB pixels) and 3 large beehives (equipped with 60 kg vibrating motors) that create an interactive space for users.

Users can control:

• Their personalized colors.
• Participate in a two-player game and bring their chosen color to the finish line.
• Use precise vibration sensors to detect movements.

This element is designed for families and children in a way that combines attractive lighting and competitive play, creating an energetic space for interaction among visitors.

CANDO: A dynamic experience with interactive technology

“The beehives are lit up, jump faster!” The mechanism of this device works in such a way that with every jump, advanced vibration sensors in the device are activated, detecting your movements and immediately lighting up the full-color RGB pixels to a specific rhythm. The large beehives equipped with 60 kg vibrating motors operating at 3000 hertz enhance the sense of victory for the winner and vibrate the loser’s platform. This element is not just a game, but a living digital art that offers complete scenario personalization, lighting effects, and light speed through an Android application.

• The optical lights 4 cm full-color point light pixels used in the structure of the beehive element enhance the interactive feeling with RGB technology capable of displaying 16 million colors.

The interactive CANDO element is fully waterproof (IP67 certified) and the optical pixels with a body made from UV-resistant polycarbonate are designed for installation in any outdoor or indoor environment. This type of luminous elements is not only resistant to moisture, dust, and sunlight but also features a smart central control box (installed in the central platform) that allows complete management of the system by the device’s client. Thus, users can easily change lighting effects, adjust the speed of the lights, and even quickly upload new programs to the device with just a few clicks in the Android application.

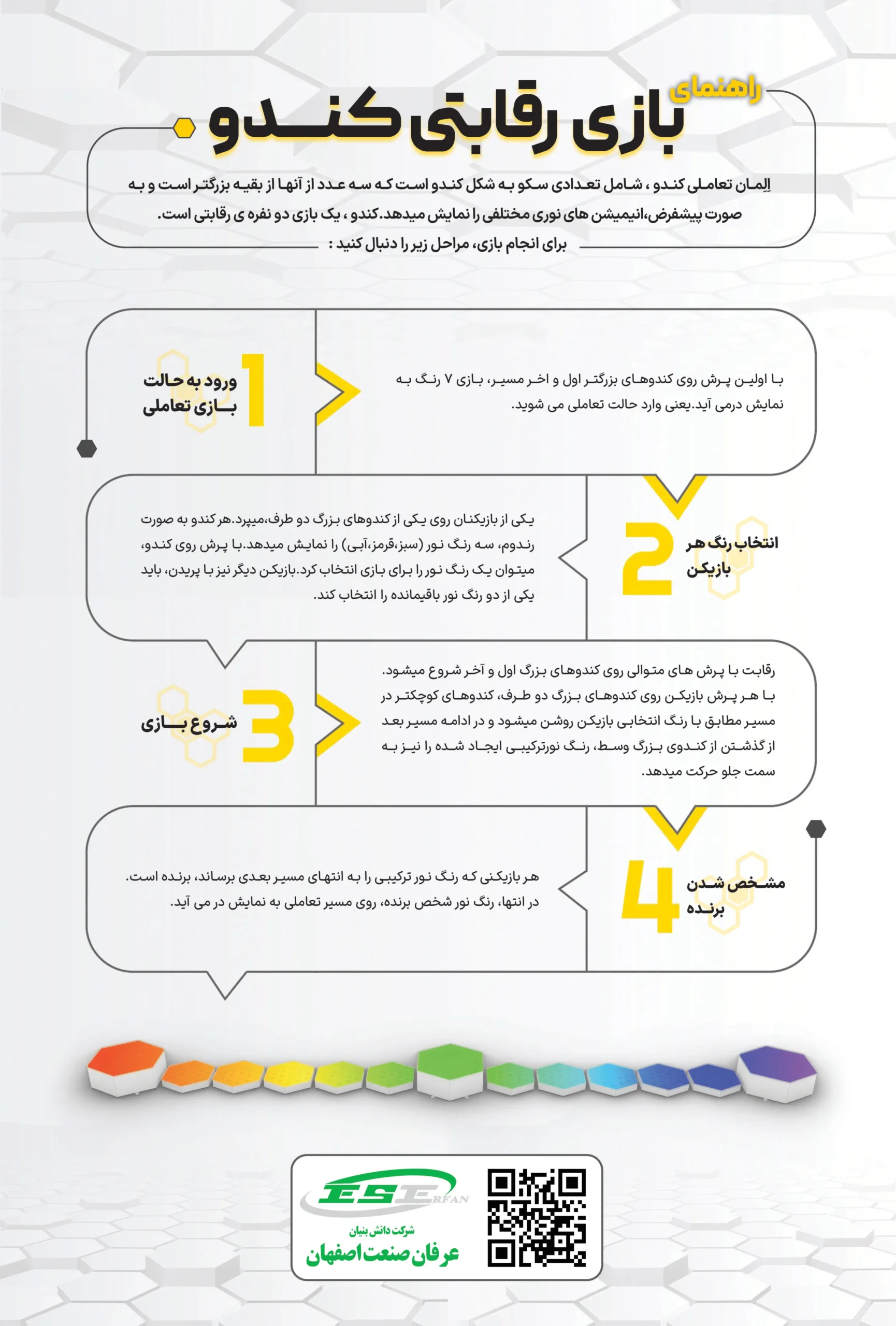

Using the interactive CANDO game: A step-by-step guide

Starting the interactive CANDO game: Step-by-step guidance for playing with two players

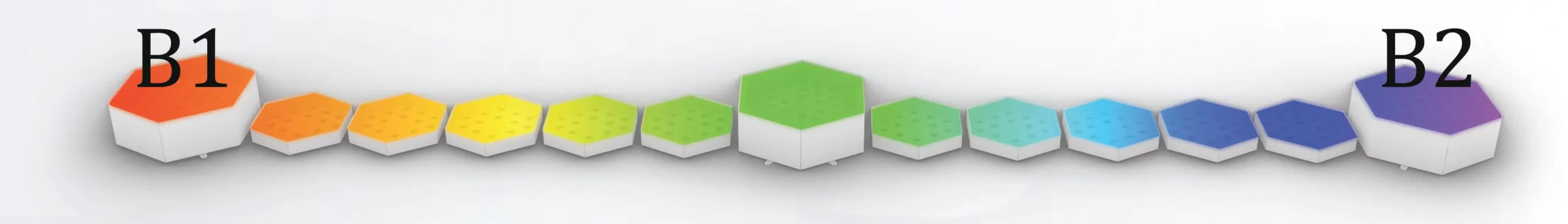

The interactive CANDO element is a two-player game that creates a vibrant and energetic space with constructive competition through the simultaneous presence of two players on either side of the platforms. To start the game, each player must stand on one side of the device on the large boxes at either edge of the element in such a way that:

• The first player stands on platform B1
• The second player stands on platform B2

These platforms are symmetrically placed at both ends of the interactive CANDO element and play a key role in detecting movements and interactions of the players.

How to use the CANDO lighting game

Using the CANDO lighting game is very simple and engaging so that any user can interact with it; this game can be ready for use in less than 5 seconds and starts in three game phases:

1. Find the starting position: Each player must stand on the specific platform (B1 or B2). These platforms are on either side of the device and detect your movements, playing a key role in the game.

2. Activating the system: After both players have stood on their platforms, the colors under each person’s feet begin to change. The beehive sensors are sensitive to user movements and with the first jump, select the user’s chosen color.

The vibration and specific lighting effect signal the start of the game.

3. Jump faster = More same-color platforms: After activation, the game displays initial instructions such that a light line is drawn to the central platform, and after that, any user who starts to jump faster on their platform can turn more platforms to their color and win the game!

Under each platform, precise vibration sensors are installed that detect the jump movements of the players. These sensors, with high sensitivity, register every jump and transmit it to the central system. Thus, when a player jumps on the platform, the system automatically executes the desired action. This feature transforms the game into a truly interactive experience between individuals.

To start the game, players must simultaneously stand on their respective platforms and begin to jump. This action activates the interactive system and the large motors will vibrate under the users’ feet, bringing the game into an interactive state.

Selecting a color in the CANDO interactive game: How to choose and mix colors

After activating the interactive mode, players enter the color selection phase. In this phase, the CANDO element displays 3 primary colors: red, green, and blue. These colors are alternately displayed on the beehives, and users must jump at the right moment to select their desired color. The steps are as follows:

1. Display of colors: After the first jump, the CANDO element begins to display the 3 primary colors. These colors appear sequentially on the beehives.
2. Color selection: Players must jump again on the platform at the moment their desired color is displayed on the beehives. For example, if a player wants to select green, they must jump at the moment the color green is shown.
3. Confirm selection: After the first player selects a color, the second player must also select one of the two remaining colors. Thus, each player will have a specific color.

Mixing colors and reaching the finish line and announcing the winner

After selecting and mixing the colors, the game enters the main phase. In this phase, players must guide the final color to the finish line by jumping successively on their platforms. Each jump makes one platform change to the player’s desired color, and the faster they jump, the more platforms change to their color.

Announcing the winner in the CANDO lighting game:

The player who brings their color to the finish line is considered the winner of the game. At this moment, the platform beneath the loser vibrates using the 60 kg vibrating motors at a frequency of 3000 hertz. This vibration not only makes the game more exciting but also causes the loser to physically feel the defeat.

Practical example of the CANDO game execution

Suppose the first player has chosen red and the second player has chosen green. After combining these two colors, five small beehives of the first player will turn red and 5 small beehives of the second player will turn green, indicating readiness to start the competition.

1. With the first jump of the players, all the platforms between the two sides turn off. Then, with each jump, the platforms light up based on each player’s activity level and change to the player’s color. This mechanism enables players to clearly see their progress.
2. When the green and red colors meet, the player who jumps faster can take over the rival beehives and turn them to their color. This part of the game requires quick responsiveness and swift decision-making.

Key point: To take over the beehives, focusing on speed and precise timing is crucial.

Ultimately, the winner is the one who can claim all the beehives up to the end of the rival’s platform. After losing, a special vibration is applied under the feet of the loser to reinforce the feeling of defeat and motivate for another competition.

This game is highly engaging due to its combination of quick responsiveness, strategy, and a sense of competition. Furthermore, its unique user experience challenges players and encourages them to keep trying.

Overall, it is worth mentioning that the scenario of the interactive CANDO game, combining two-player competition, color selection, and final mixing, creates a unique experience for players. This game is not only entertaining but also strengthens the sense of competition for players through the use of vibration sensors and smart vibrations.

Technical specifications of the CANDO interactive element

Technical specifications table of the CANDO interactive element (CANDO)

Visual specifications of the CANDO lighting game

The CANDO interactive element features a precise and modern design, consisting of a robust metal structure covered with a layer of shatter-proof tempered glass, which divides the structures into two main types: small beehives and large beehives. This element offers a total length of 8 meters, providing suitable space for installation in various environments, especially parks and urban sidewalks.

Small beehives:

• Number of 10 small beehives
• With a diameter of 58 cm
• And a height of 10 cm

These platforms play an important role in displaying the color paths for each player and are symmetrically distributed on either side for each player. Each player is also allocated 5 small beehives arranged on either side of the middle large beehive.

Large beehives:

• Number of 3 large beehives
• Diameter 80 cm
• Height 28 cm

The large platforms serve as the placement area for players and color selection. These beehives, in addition to their aesthetic function, act as interactive control centers in the game. When the first jump occurs on any of these platforms, it automatically selects one of the changing colors as your color, and then it is the turn of your rival to select their color.

Tempered glass

To protect and enhance durability, all beehives are covered with 10 mm tempered glass. This type of glass not only has high impact resistance but also protects the internal lighting and optical pixels.

CANDO interactive element: high resistance and long-lasting

The CANDO interactive element, with its waterproof and shockproof design, combined with an IP67 certification, is among the most durable and lasting products in Iran. This element, due to its complete waterproofing, is considered an ideal option for use in outdoor and external environments.

Resistance to water and dust:

The protection class of IP67 indicates that this element can withstand temporary immersion in water (up to a depth of 1 meter and for 30 minutes) and is resistant to the infiltration of external particles. This feature ensures that the element maintains its functionality even in harsh weather conditions.

Full-color RGB optical pixels

The heartbeat of the CANDO interactive element consists of 4 cm full-color RGB pixels that are designed with advanced technology. These pixels are modular and smartly integrated into the beehives.

In total, 301 pixels are present in the structure of the element, distributed as follows:

• 10 small beehives, each with 19 pixels.
• 3 large beehives, each with 37 pixels.

In the section below, you can view the technical specifications of the 40 mm pixels used in this project:

• Type: 4 cm pixel
• Number of wires: 4 wires
• Input voltage: 24 volts
• Power consumption: 1 watt
• Number of SMD in each pixel: 6 units
• Protection degree: IP67 (water and dust resistant)
• Body materials: UV-resistant polycarbonate that is resistant to sunlight

For a more detailed examination of the 4 cm pixel information, you can refer to this product page.

The smart application of the CANDO lighting game

Using the dedicated Android application, users can completely personalize the effects and lighting dances. This feature transforms the CANDO element into a dynamic and flexible system that continually maintains its appeal.

In the section below, you can watch the tutorial video on how to use the company’s dedicated Android application:

Smart central box

The central box used in the CANDO interactive element is the active brain of this system, providing all the processing and coordination between the various components of the system. This central box controls and manages all operations from start to finish. The central box is designed as a single unit and is connected by sturdy cables to the user panel and the photo frame element. This part processes commands and coordinates the performance of the entire system. Additionally, the internal specifications of the central box are as follows:

• 24 outputs 24 volts.
• Equipped with dedicated mobile software for easy management.
• Users can monitor the performance of the element from anywhere in the country and make necessary changes.
• New scenarios and lighting effects can be added through the application.
• Multiple CANDO elements can be connected together to create larger networks.
• Replacement, speed change, direction change, and shutdown without the need for power outages; this feature allows users to make various adjustments without cutting off electrical power.
• Users can replace the memory and upload new programs and animations.
• The central box is protected by a separate fuse and contactor.
• Metal design with complete waterproofing and air circulation system ensures its durability and continuous performance.

High durability and strength of CANDO: Quality consumables

To ensure the longevity and resistance of the pixels inside the CANDO interactive element and durability in various conditions, a combination of advanced materials is used in their structure. These materials not only enhance the technical performance of the product but also ensure that the CANDO game withstands environmental challenges and wear over time.

1. Industrial resin for waterproofing and protection

Industrial resin with a special formulation is used for waterproofing the pixels and internal wiring.

This material not only prevents moisture and dust ingress but also reduces friction between parts and prevents unwanted connections. The high resistance of the resin to temperature changes and chemicals makes it an ideal choice for industrial and external environments.

2. UV-resistant polycarbonate body: Resistance against environmental factors

The bodies of the optical pixels inside the beehives are made from UV-resistant polycarbonate specifically designed to combat harmful sunlight. This advanced material prevents yellowing or brittleness of the pixels after prolonged exposure to direct sunlight. Additionally, UV-resistant polycarbonate resists rain, humidity, and climatic changes, ensuring the continuous operation of the pixels.

3. Long-term benefits of using these materials

• Reduced maintenance needs: Due to the high resistance of the materials, the CANDO element operates for years without the need for replacement or complex maintenance.
• Cost savings: The high durability of the consumables significantly reduces maintenance and replacement costs.
• Consistent performance in harsh conditions: Whether in tropical areas or humid environments, the performance of the pixels will always remain stable.

Multi-purpose application of the CANDO lighting jump game in diverse spaces

The interactive CANDO game, combining environmental resistance and advanced technology, has applications in various projects. A prominent example was the first unveiling of CANDO at the Light Park of Isfahan (April 2025), which received an unparalleled reception from the public. This element, with UV-resistant polycarbonate and industrial resin, resists light, moisture, and dust, using interactive sensors to change lighting patterns with user movements.

The success of the CANDO project in the Light Park of Isfahan demonstrates the ability of the CANDO element to transform traditional spaces into modern luminous attractions and reduce maintenance costs.

The CANDO element, with its various certifications including IP67 and complete waterproofing, high mechanical resistance, and stability against environmental factors, is capable of installation in a wide range of spaces. These features make it an unparalleled option for various projects, combining both aesthetics and performance.

1. The CANDO smart game in urban spaces

Given the CANDO game’s resistance to moisture and heavy rain, you can use this product in pedestrian paths, pool edges, or green spaces of parks. Even in areas with variable climates (such as continuous rain or heat), the pixels resist without loss of quality for many years. The 2-year warranty and 5-year after-sales service reflect our confidence in the product’s quality!

In busy urban spaces, resistance to physical pressures (like accidental collisions or vibrations) and air pollution are among the key advantages of this product. This element can be used as part of intelligent urban lighting or playground facilities for citizens.

2. Commercial and recreational centers: Combining beauty and light with the CANDO lighting system

Shopping centers and markets:

In the indoor areas of commercial centers, the CANDO element can be used as creative lighting components, advertising boards, or movable partitions. Resistance to humidity from air conditioning or crowd density is another necessary feature for these spaces.

Amusement parks and tourist attractions:

In busy and dynamic environments like theme parks or interactive museums, the CANDO lighting element has a long service life due to its durability against impacts and wear. Moreover, the flexible design of the CANDO lighting facilitates the creation of attractive artistic or informational displays.

3. Coastal and marine areas: Coping with corrosive environmental conditions

Beaches and ports:

In coastal areas, resistance to saltwater and high humidity is of particular importance. The CANDO element uses corrosion-resistant polycarbonate and waterproof resin, thus it does not get corroded or damaged even in proximity to sea water.

Ships and boats:

This element can also be applied in the inner spaces of ships or coastal lighting projects. Its resistance to temperature fluctuations, from the intense heat of the day to the cold of the night, makes it ideal for these environments and can provide great entertainment for the crew inside the ship!

The CANDO game with customization and smart control features

The CANDO interactive element, through a dedicated Android application, allows users to adjust all lighting effects and dances to their preferences. From changing colors, light movement speed, and beam direction to designing custom animations, everything is under user control. This feature turns the element into a creative tool that consistently retains its novelty.

Using the internal memory embedded in the central box, users can easily upload new programs and animations without the need for complex equipment. This feature ensures that the element remains updated and compatible with user needs.

Smart control system: Managing all functionalities through a mobile phone

The heart of CANDO’s technology, its smart control system, centrally manages all processes in real-time through the central box. This system allows users to control all settings and programs remotely without physical intervention. Thus, the efficiency of the element is greatly increased.

Central box:

The central box used in this game manages all pixels and sensors through 24 outputs of 24 volts. This box is equipped with dedicated mobile software that provides features like online control, program updates, and networking capabilities.

Control capabilities of the CANDO game:

• Online control: Users can monitor the performance of the element from anywhere in the country and apply necessary changes.
• Switching, changing light speed: Without needing to cut off power, users can apply all settings.
• Shutting down or changing programs: This capability allows users to turn the element off at any moment or transfer it to another state and provide a schedule for automatic activation.

Complete protection:

The central box is protected by a separate fuse and contactor. Furthermore, the metal design with complete waterproofing and air circulation system ensures durability and continuous operation.

In conclusion, it can be said that: the CANDO interactive element, with its complete waterproofing (IP67), scenario personalization capabilities, and smart control system, is an advanced and innovative technology product. This element not only has an attractive appearance but also creates a unique experience for users with its numerous features. With these characteristics, the CANDO element has become an essential tool for urban, commercial, and recreational spaces.

Installation and setup of the CANDO interactive element: A comprehensive guide for installation and operation

Choosing an appropriate location for installing the CANDO interactive element plays a key role in the success and efficiency of this product. Given its flexible design and complete waterproofing (IP67), this element can be installed in a wide range of spaces.

Suitable locations for installing the CANDO interactive element

Parks, squares, and urban open spaces are among the best options for installing this element. The interactive CANDO game can serve as an entertainment attraction for families and children, turning park spaces into lively areas.

In shopping centers, this element can act as a point of attraction for brands and stores. The two-player CANDO game not only creates an enjoyable experience but can also help increase customer presence in stores.

Steps for installing the CANDO interactive element: A simple and practical guide

Installing the CANDO interactive element requires precision and adherence to technical needs. The following are the steps for installing this element:

1. Needs a linear and straight 8-meter space; although this element has broad customization possibilities and can also be implemented in curved and circular forms. This element requires a linear and unobstructed space of 8 meters. Before installation, it must be ensured that there is enough space for placing the element and for the players to move freely.
2. Connecting to power: To activate the element, it must be connected to a 220-volt power source. This connection should be carried out by electrical specialists to ensure complete safety. It is worth mentioning that the input of the central control box is 220 volts, but the power consumed by the device is 24 volts, which is automatically converted inside the central box to the required power.
3. Setting up the central box: The controlling central box of the element should be placed in a safe location; by default, the central box is located inside the central large platform. Also, after the structure installation, the dedicated mobile software should be installed on Android phones and synchronized with the central box.
4. Functionality check: After installation and connection, all functionalities of the element must be tested. This includes checking the operation of the pixels, vibration sensors, vibration motors, and smart control system.
5. Preparing for use: After ensuring the correct functionality of the element, it can be prepared for public use. Furthermore, various effects and scenarios can be demonstrated during installation to enhance its attractiveness.

The installation and setup of the CANDO interactive element must be conducted while respecting technical requirements and choosing a suitable location to provide an exceptional experience for users. This element, with its durable and flexible design, is an ideal option for various spaces such as parks, shopping centers, and light festivals. By providing precise guidance and properly executing installation steps, you can benefit from all the capabilities of this product.

For consultation and guidance regarding this smart lighting game, you can contact our sales experts:

Maintenance and after-sales service of the CANDO interactive element

Erfan Sanat Isfahan Company, under the ESE brand, offers the CANDO interactive element to customers with an 18-month warranty and 5 years of service after the sale. This long support period attests to the quality and durability of the product over time and provides complete assurance of its flawless performance. After-sales services include specialized repairs, software updates, and technical consultancy, optimizing the customer experience for purchasing and using the product. This commitment of the ESE brand demonstrates confidence in technical capabilities and a commitment to customer satisfaction.

Memory replacement and troubleshooting:

In the event of any technical issue, users can submit a request for remote troubleshooting via the website. The technical team of Erfan Sanat Isfahan Company can diagnose problems quickly using wireless networking and resolve them in the shortest possible time.

Program updates:

Users can use the mobile application to implement various programs and games on the element and execute different game scenarios, even setting it to automatic mode to begin displaying animations or various and attractive color sequences.

Safety items: Every 6 months, check electrical connections and cables to ensure there is no dust or moisture.

It is advisable to periodically check the performance of the central box and vibration sensors using the mobile application.

By adhering to the 18-month warranty, 5-year after-sales service, and simple maintenance tips, the CANDO interactive element will operate without issues for many years. This element is not only a high-quality product, but with the specialized support of Erfan Sanat Isfahan, it is considered an ideal investment for beautifying any space.

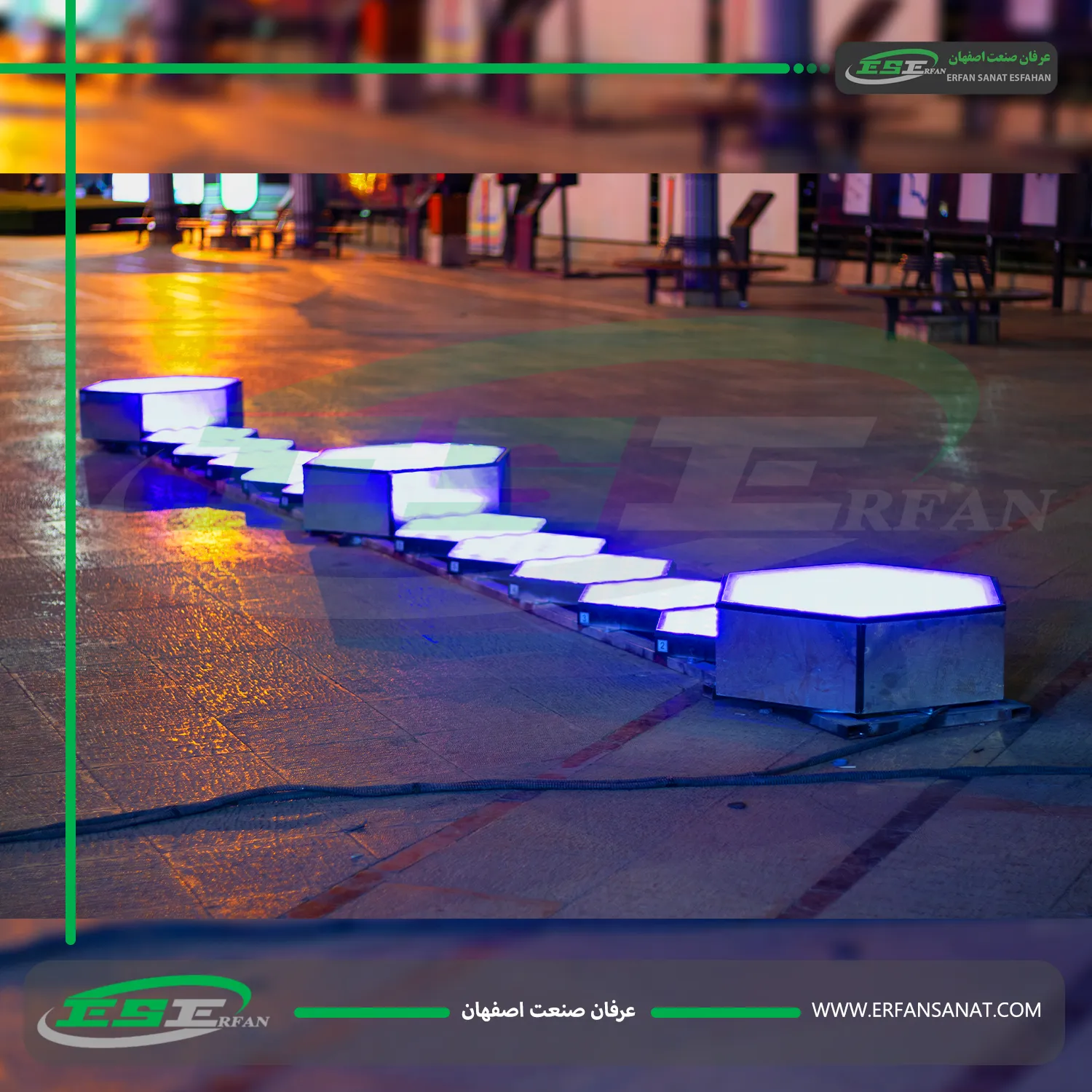

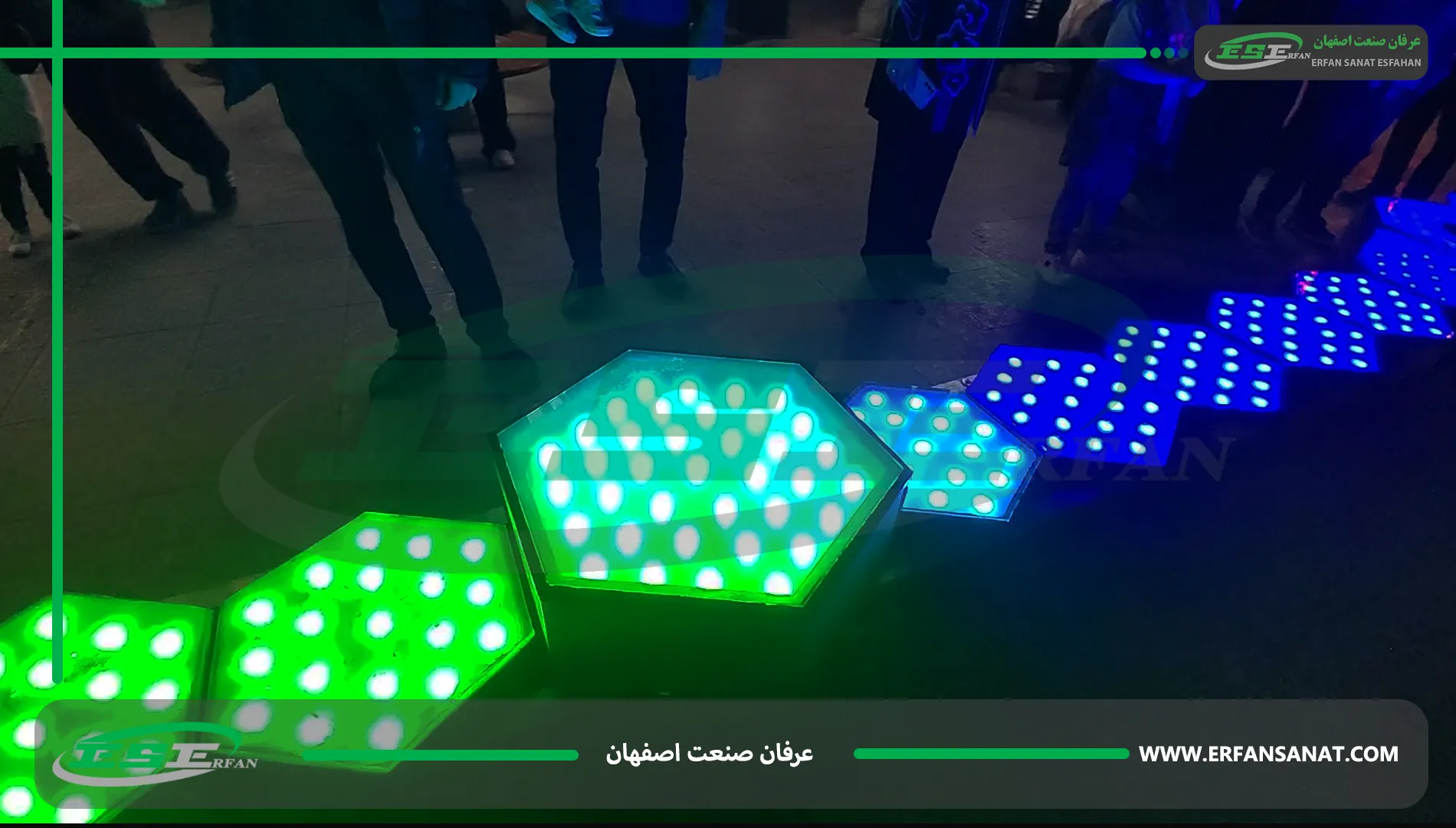

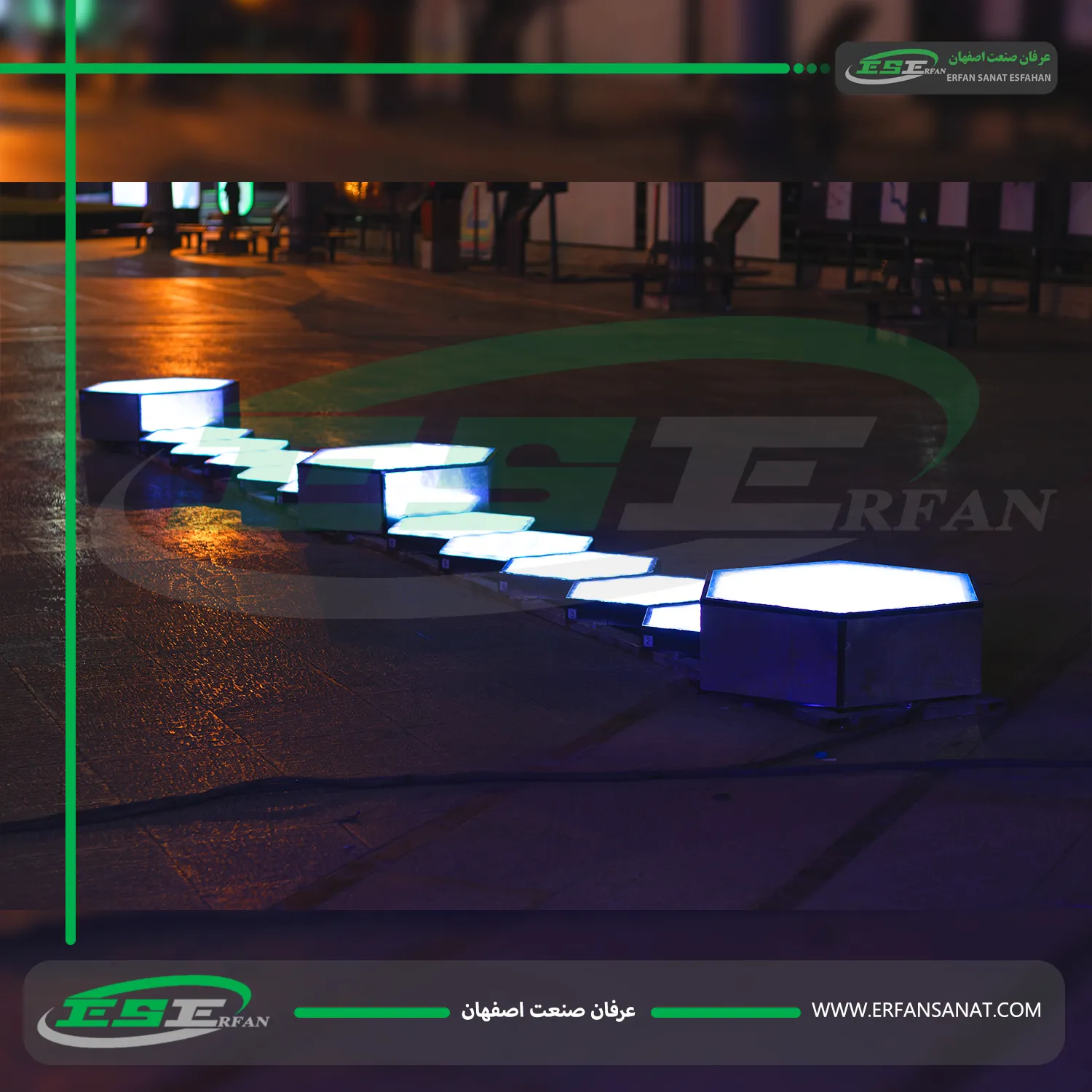

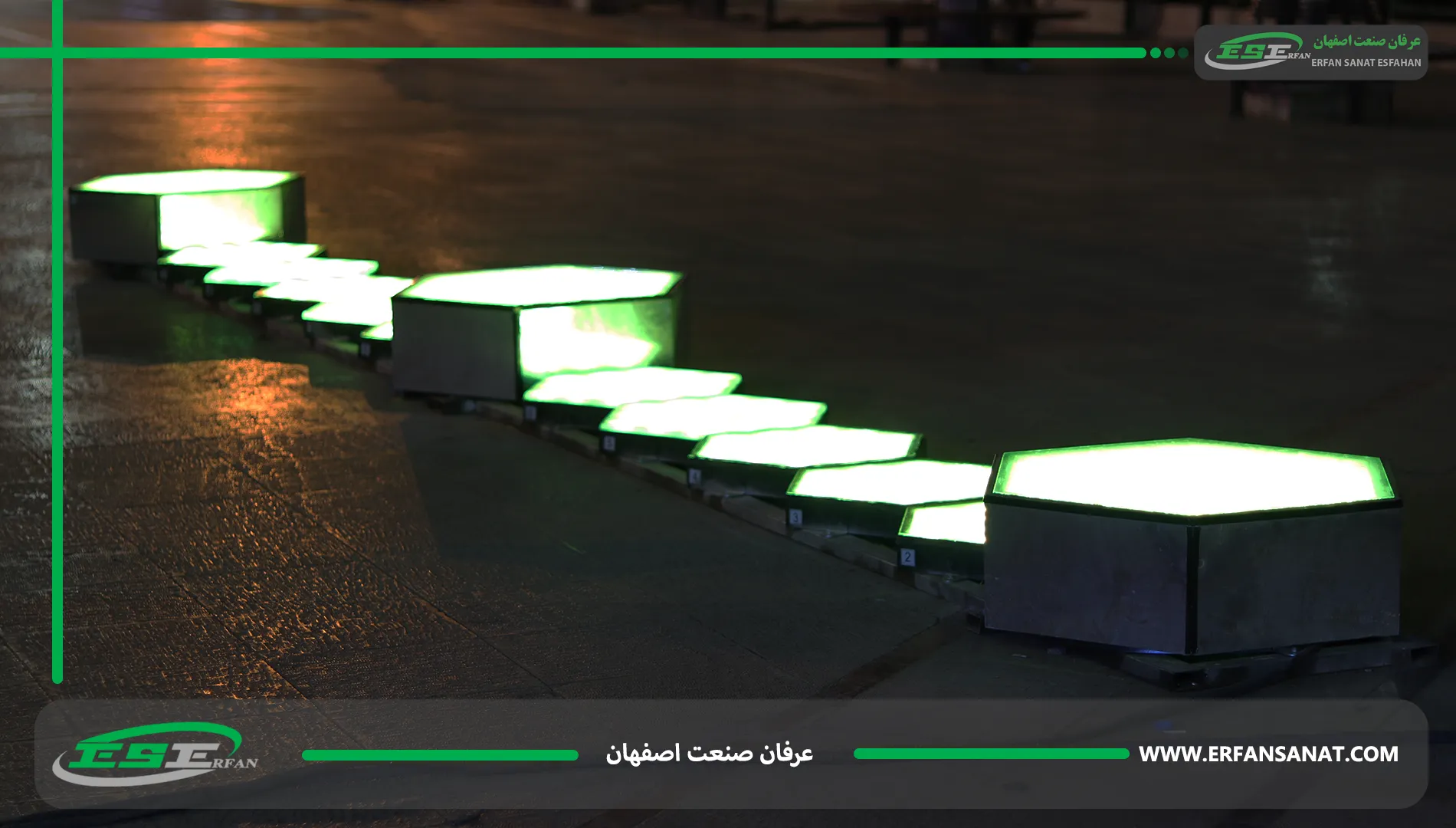

Successful Example: Light Park of Isfahan

The Isfahan Municipality took a significant step towards the smart urbanization of spaces by implementing the country’s first “Light Park” in Isfahan. This project was met with an extraordinary reception from the public and is viewed as a model for other cities.

In this light park, several smart lighting elements were present, among which the following can be mentioned as the best:

• Interactive smart photo frame element
• Interactive CANDO game element
• Interactive smart Eskimo house photography element

The CANDO interactive element, integrating artistic lighting and interactive technology, presents an innovative solution for municipalities to transform public spaces into attractive, safe, and dynamic locations. This element was unveiled for the first time at the Light Park of Isfahan (in front of Abbasi Hotel) and was met with widespread appreciation from the public. This project showcases the ability of the CANDO game to revive historical spaces and foster citizen interaction.

Furthermore, for use in bridges and pedestrian pathways, the CANDO lighting element with colorful interactive lights creates beautiful and interesting paths for passersby that change the lighting patterns and define the path with every step or jump on the interactive platforms. This not only beautifies but aids citizens in navigating safely and can transform bridges into tourist attractions, similar to projects in global cities.

In smart parks, CANDO creates a fun space for all ages. Children and adults can control the lights with their body movements, enhancing physical activity while preventing unnecessary gatherings in parks. Also, the CANDO element can be used in cultural projects. For example, municipalities can utilize it to display historical motifs or practically teach scientific concepts. In Isfahan, students learned the concept of secondary colors by combining primary colors in the CANDO element, which is an example of experiential learning.

Installing this element in smart squares

Installing the CANDO element in urban squares encourages citizens to engage in exercise, play, and conversation. For instance, at night, the element can illuminate the square with calming light effects while simultaneously activating competitive games among citizens.

CANDO in bridges and pedestrian pathways

The use of the CANDO element next to urban bridges or pathways increases attractiveness. With every step or jump by citizens on the platforms, colorful lights activate and define the path. This not only beautifies but draws attention to safe pathways.

Smarter parks with CANDO

Designing interactive play spaces in parks where children and adults can control the lights through body movements. This prevents unnecessary gatherings in parks while promoting physical activity.

The CANDO interactive element, with its customization ability and flexibility, serves as a practical tool for municipalities because:

• They make urban spaces attractive and dynamic.
• They reinforce urban culture and identity.
• They enhance citizen safety in public spaces.

This element is not just a lighting system; it is considered an investment in the mental and social health of citizens.
