What is the Shamseh Chandelier?

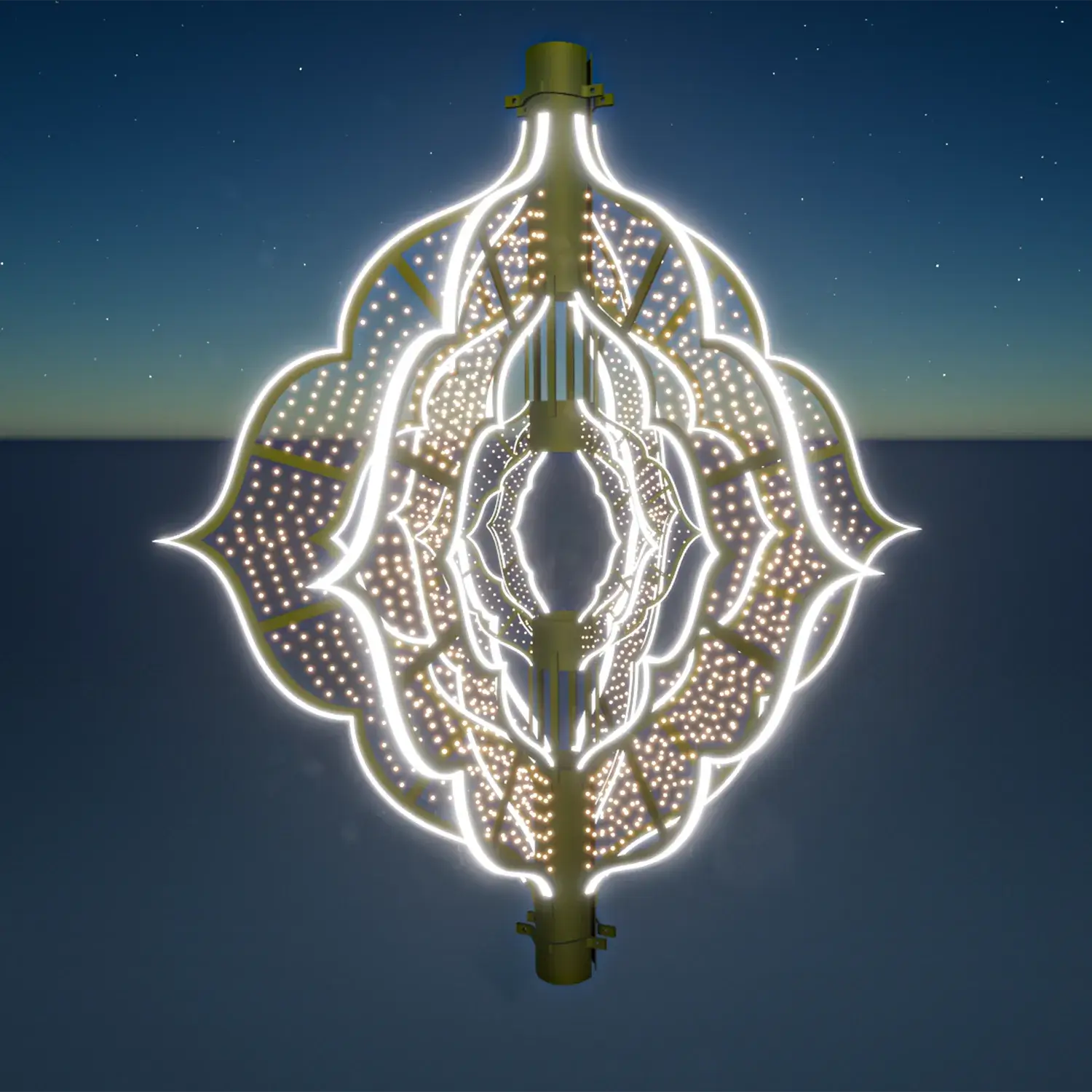

The Shamseh Chandelier is considered a specialized and multipurpose structure for illuminating high-ceiling spaces, designed in two independent sections. The lower section, with dimensions of 2.10 meters in height and 1.8 meters in diameter, acts as the main lighting element, while the smaller upper section, with a height of 60 centimeters, plays a complementary and visually balancing role. Both units are built based on a six-petal design, and this geometric pattern, in addition to its visual beauty, distributes light uniformly in all directions.
A prominent feature of this product is the combination of two different lighting systems. The first system includes 240 meters of LED string lights with Epistar chip technology, which produces a warm daylight color with a temperature of 2400 to 2700 Kelvin. The second system consists of 45 meters of double-sided neon flex strips, which highlights the chandelier’s structural lines and creates a desirable visual depth. The entire assembly is mounted on a metal base with an adjustable height of up to 7 meters, allowing it to be customized according to the needs of each project.
Technically, all electrical components have an IP67 protection rating, which ensures complete resistance against water and dust ingress. This feature makes the Shamseh Chandelier suitable for installation in both indoor and outdoor spaces.
Structural Design and Geometric Structure
The Shamseh Chandelier is built on a foundation of symmetrical geometry and a two-level design, where each of its two units has an identical six-petal structure. This geometric symmetry not only ensures visual beauty but also provides a balanced distribution of weight and light throughout the structure. The lower section, with a diameter of 1.8 meters and a height of 2.10 meters, is designed as the dominant element, and the upper section with smaller dimensions plays a complementary role.
Symmetrical Six Petals on Two Levels
Each of the two chandelier units is composed of six independent petals, which are crafted with identical precision. These petals are produced from 2×1 profiles with a thickness of 2 mm, and their bent sections are connected to each other with specialized connectors. This construction method, in addition to creating optimal strength, allows for easy repair and maintenance.
Central Column and Connection of the Two Units
The two units are connected via a 3-inch diameter steel pipe, which serves as the central column. This pipe not only ensures the overall stability of the structure but also provides a pathway for electrical and control cables. The design of this section is such that it allows for easy installation and separation of the two units if needed.
Main Base and Decorative Sections
The main base of the chandelier is made from a 4-inch pipe with a 3 mm thickness, which has an adjustable height of up to 7 meters. The lower section of this base, 80 cm in height, is decorated with decorative patterns and includes collar and finial interfaces that give a distinct visual identity to the entire structure. These details not only create visual beauty but also have a protective role and prevent damage to the base during installation and repairs.
Technical Specifications of the Body, Base, and Connections
The technical specifications of the Shamseh Chandelier are defined based on industrial standards and the application needs in various spaces. The metal structure of this product is produced from high-quality raw materials to have the necessary durability and resistance against environmental factors. The two main sections of the chandelier, the large and small units, have precise dimensional specifications that allow for installation in spaces with different ceiling heights.
2×1 Profile and Precise Bending
The construction of each of the six petals is done using a 2×1 steel profile with a 2 mm thickness, as this thickness creates a suitable balance between weight and strength. The bent sections are shaped with special precision, and the inter-chandelier connectors are designed for a firm connection of the petals to each other.
3-Inch Central Pipe and 4-Inch Base
The central column is made of a 3-inch pipe, which is responsible for connecting the two units and routing the electrical cables. The main base is also produced from a 4-inch pipe with a sheet thickness of 3 mm, capable of bearing the load of the entire structure. The standard height of the base is 7 meters, but it can be changed upon customer request. The lower 80 cm section of the base is decorated with decorative designs, collar and finial interfaces.
Connectors and Connection System
All metal connections are made using specialized connectors that provide high strength and allow for easy installation and relocation. These connectors are designed to be resistant to vibrations caused by wind or other external factors.
Lighting System: LED String Lights and Neon Flex
The Shamseh Chandelier is composed of two independent lighting strip models, each with a specific task in creating the desired lighting atmosphere. The first system includes LED string lights, which are responsible for the main illumination, and the second system consists of double-sided neon flex strips that highlight the chandelier’s structural lines. The combination of these two systems creates a unique visual depth and luminous effect that is very suitable for high-ceiling and display spaces.
DC LED String Lights with Epistar Chip
The main lighting system includes 240 meters of string lights with a 220V input voltage that operates on DC technology. This string is made of 1×0.5 white stranded wire with a double PVC sheath, which has complete resistance to sunlight, electric shock, and fire. Every 6 meters of the string contains 60 Zener diode 0.1W LEDs with an Epistar chip, as these chips have a long lifespan and optimal efficiency. The produced light color is in the warm daylight spectrum with a color temperature of 2400 to 2700 Kelvin, which creates a pleasant and agreeable atmosphere. An important feature of this string is its very low lumen depreciation, which means maintaining light intensity over a long operating time.
Double-Sided Neon Flex Strip
The complementary lighting system includes 45 meters of double-sided neon flex strips that operate with a dedicated driver. This driver is responsible for converting AC to DC power and ensures the stable performance of the neon strip. The prominent feature of this strip is the creation of uniform light along its entire length, which highlights the geometric lines of the chandelier without flickering or color change. The IP67 protection rating of this strip allows for its use in various weather conditions.
Metal Controller Box and Auxiliary Equipment
The control and management of both lighting systems is done via a metal controller box, which has a contactor protector and is fully sealed. This box is equipped with a mounting gland that allows for installation on a utility pole or any column with a maximum diameter of 20 cm. The metal structure of the box and its complete sealing ensure resistance against atmospheric factors in all regions of the country.
Applications of the Shamseh Chandelier
The Shamseh Chandelier, given its considerable dimensions and unique technical features, is designed for various spaces that require prominent and attractive lighting. The combination of two independent lighting systems and an IP67 protection rating makes this product suitable for a wide range of architectural projects.
Suitable Spaces for Installing the Shamseh Chandelier:
-

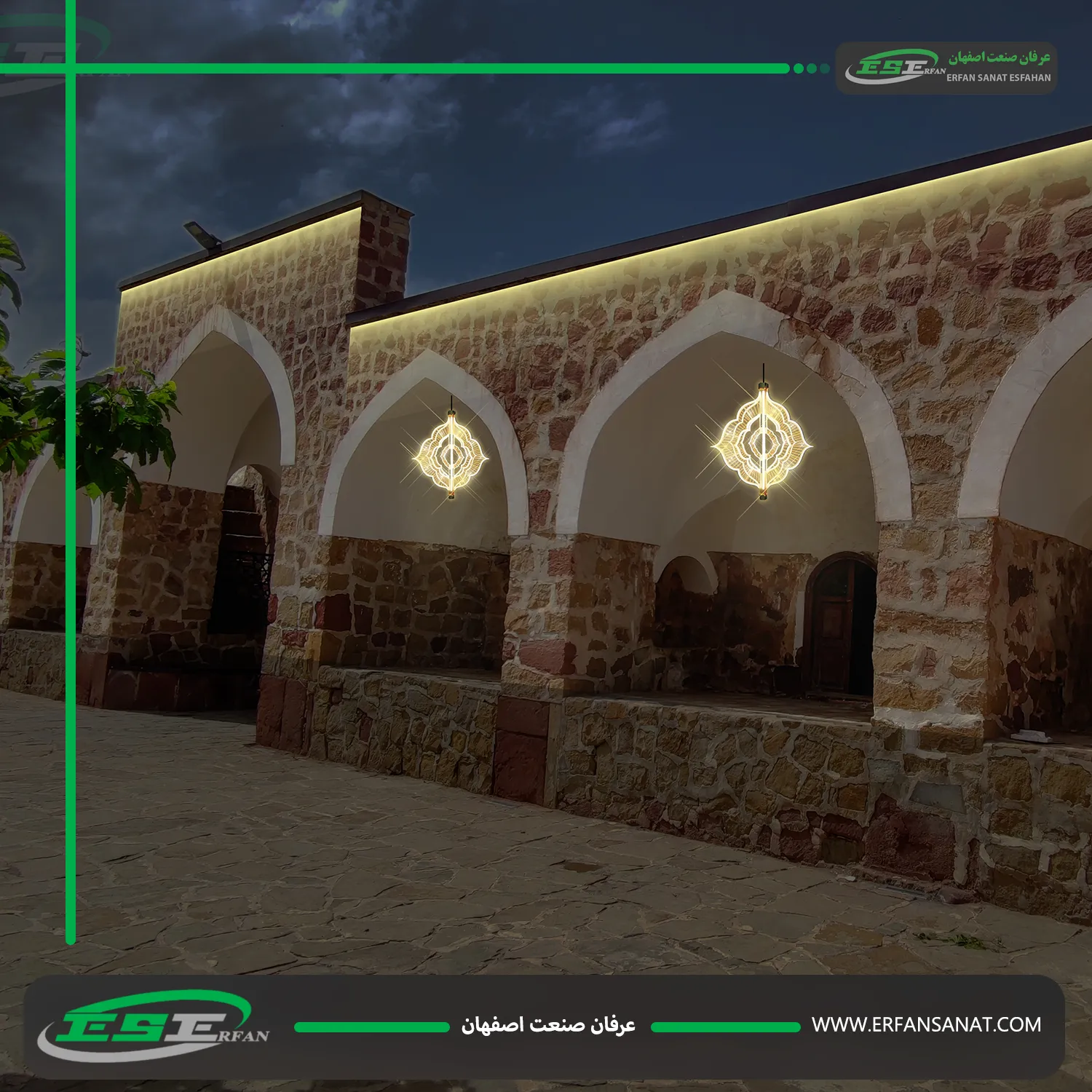

Shrines and Religious Centers
The Shamseh Chandelier is suitable for illuminating courtyards and religious spaces and has been used in projects such as the Holy Shrine of Imam Reza (AS). The warm 2400-2700 Kelvin daylight creates a spiritual and tranquil atmosphere. -
Hotel Lobbies and Accommodation Centers
With a total height of 2.7 meters (large + small unit) and a 1.8-meter diameter, this chandelier is ideal for high-ceiling reception areas and creates an attractive focal point that welcomes guests with warm light. -
Convention and Conference Halls
The uniform light from 240 meters of Epistar LED string lights provides sufficient illumination for assembly activities, and the two-level design adds a suitable visual depth to the space. -

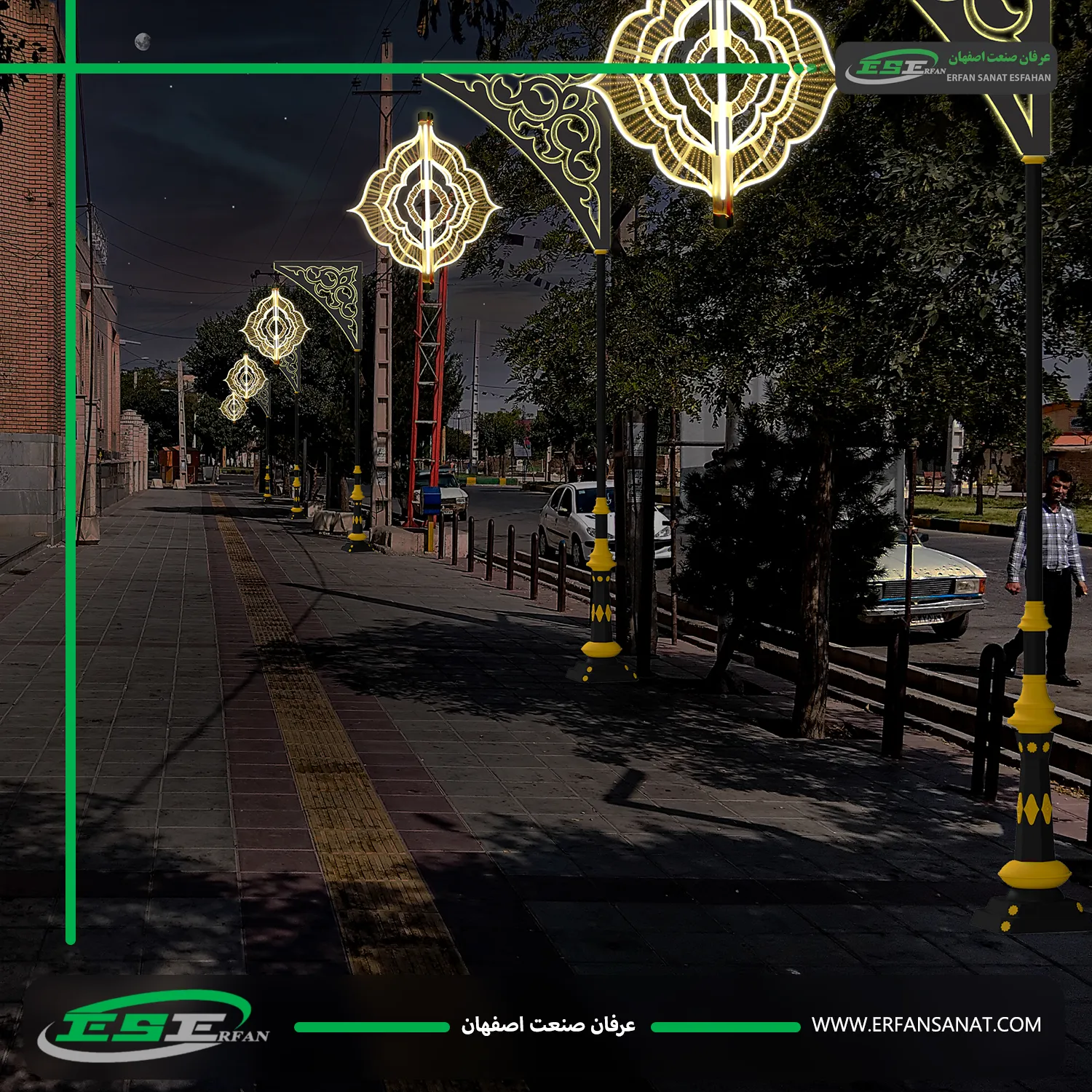

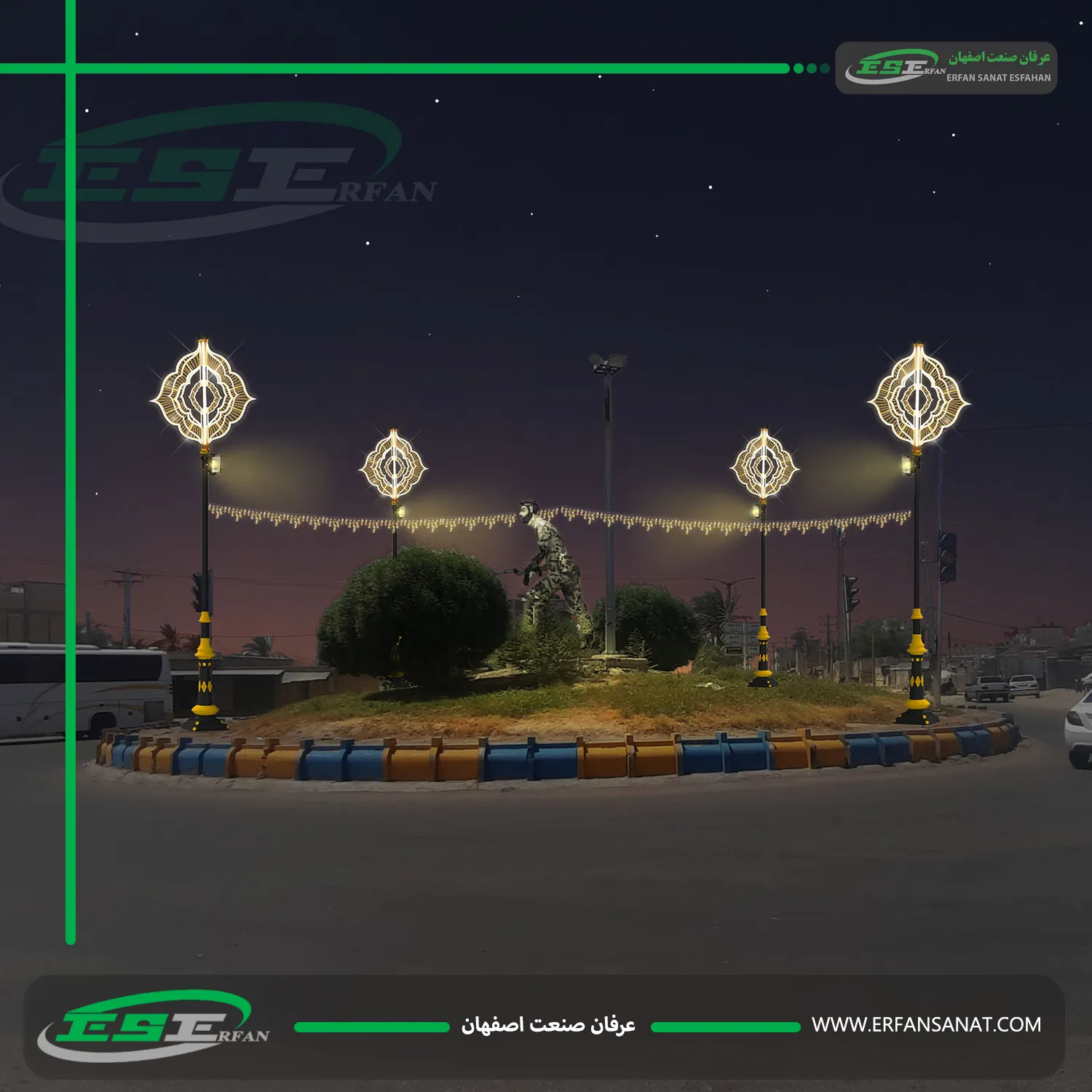

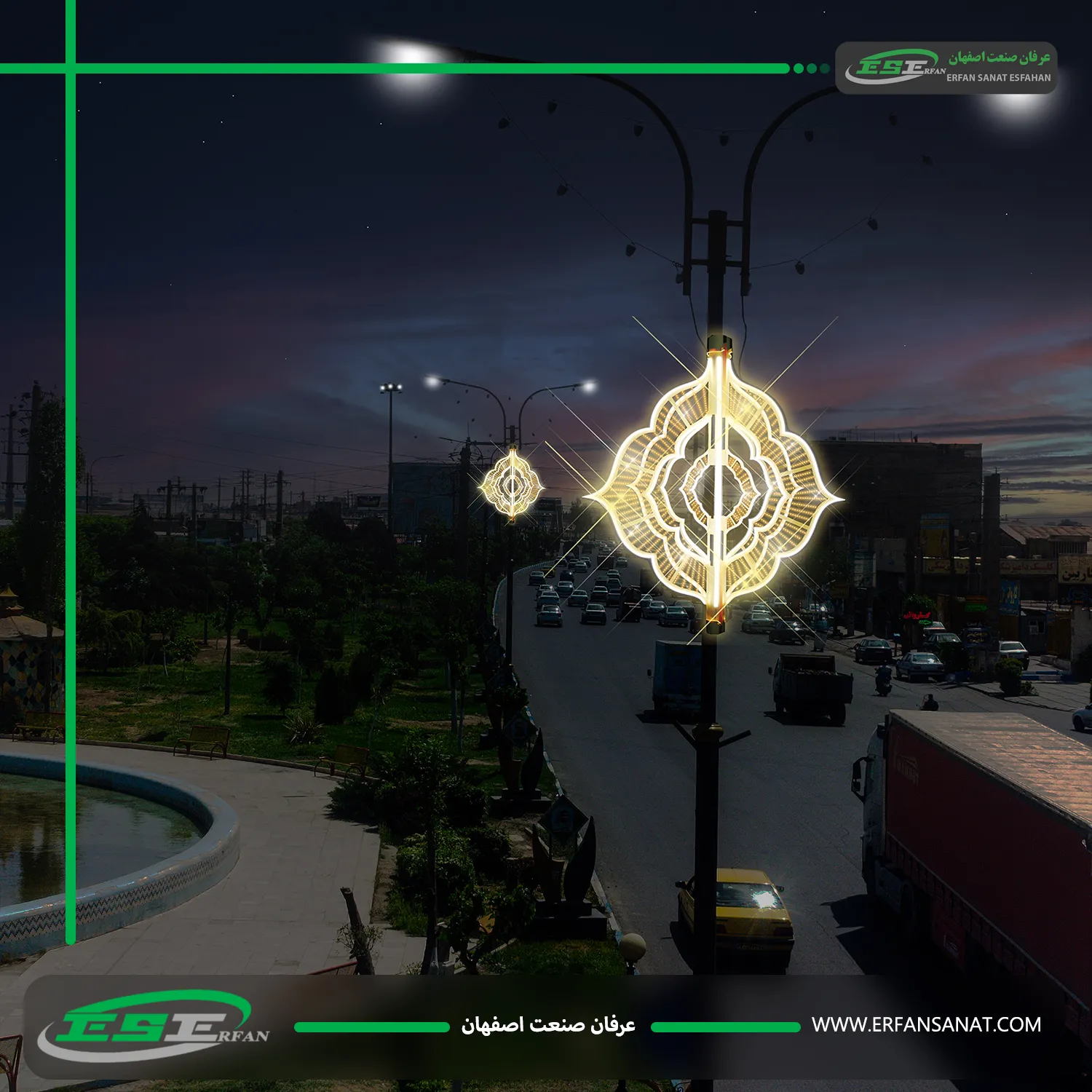

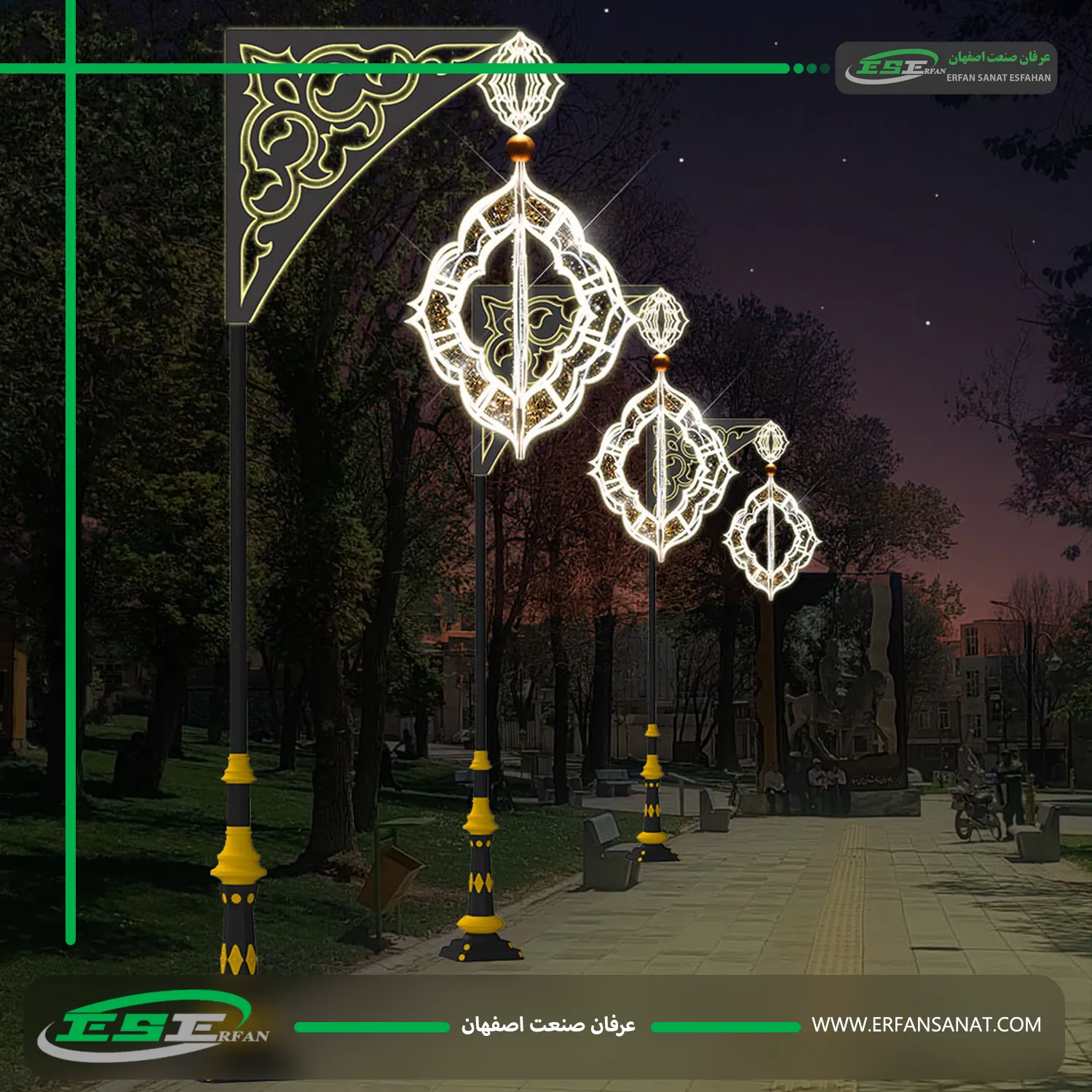

City Squares and Public Spaces
The IP67 protection rating and complete resistance to water and dust allow for outdoor installation. The metal controller box with its special gland can be installed on utility poles up to 20 cm in diameter.
