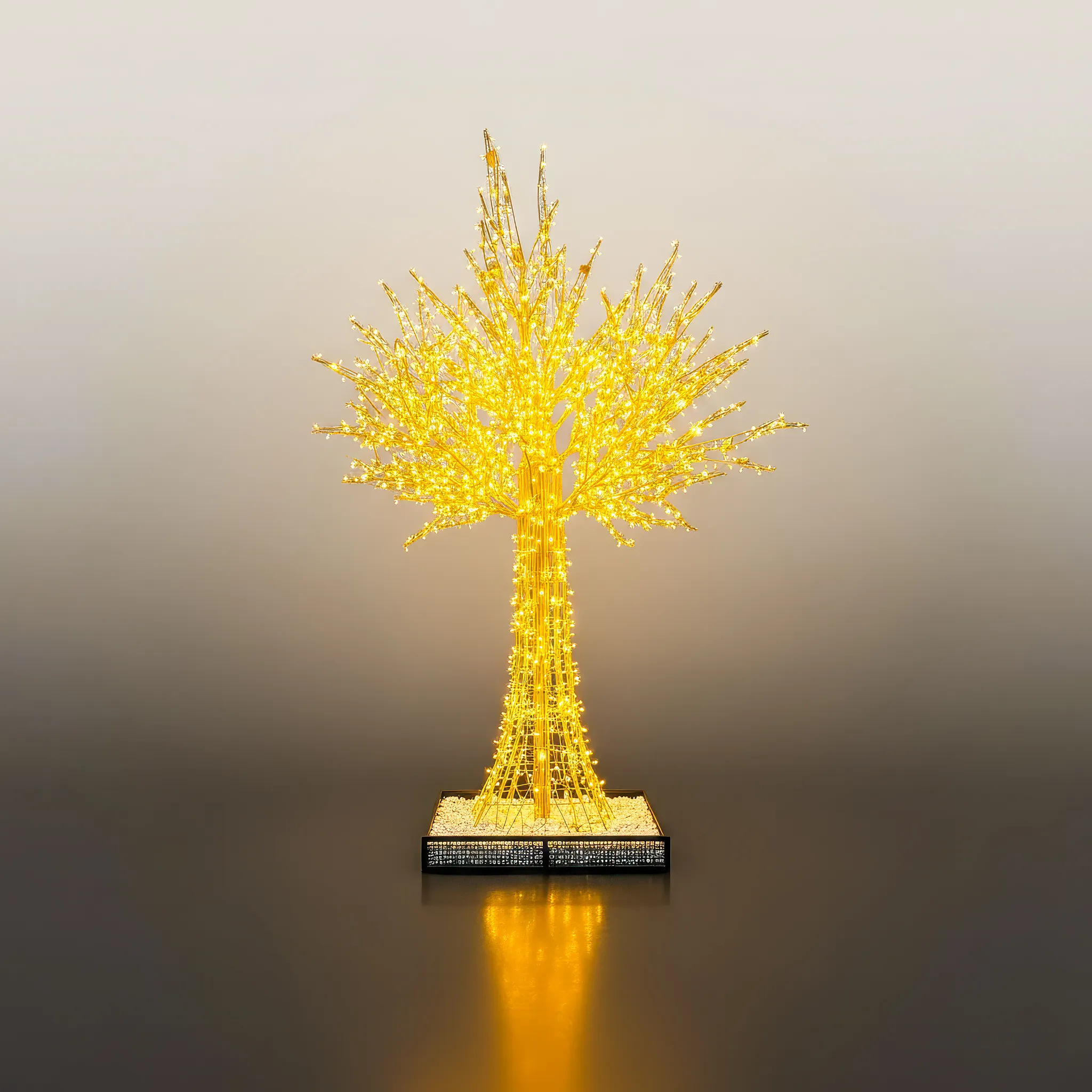

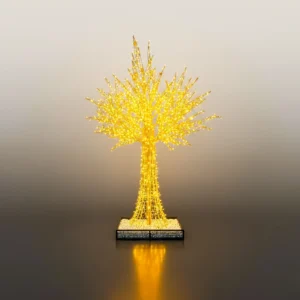

In today’s world, where urban lighting plays an important role in the beautification of public spaces and creating visual identity, the use of creative and durable elements has become more important than ever. One of Erfan Sanat Esfahan Company’s products in this field is the Delsa Light Tree. This element, with its eye-catching design, structural strength, and advanced lighting, is an ideal option for municipalities, commercial centers, parks, squares, and even decorative projects and urban celebrations.
General Specifications and Foundation
The Delsa Light Tree is designed with a height of 5 meters and creates a striking effect as a prominent element in its surroundings. For secure installation and increased stability, an excavation of 1×1 meter dimensions and 1 meter depth is performed. In the foundation section, rebar numbers 14 and 16 are used for mesh reinforcement and rebar number 20 for the bolts. These technical details have been carefully selected to ensure the structural strength against environmental pressures, wind gusts, and weather changes, and to maintain the complete safety of the product in the long term.
Delsa Light Tree Technical Specifications
In the table below, some of the main features of this product are summarized:
| Section | Specifications |
|---|---|
| Height | 5 meters |
| Foundation | Excavation 1×1 meter with a depth of 1 meter, use of rebar 14, 16, and bolt 20 |
| Metal Structure | 2×2 box section, 6 and 10 mm wire rod, total weight about 400 kg |
| Light String | 360 meters of DC needle string light (1×50 meter, 6×35 meter, 4×25 meter) |
| Input Voltage | 24 Volts |
| Light Source | Zenered Epistar LED, 49 units per 5 meters |
| Color Temperature | Warm White 2400–2700 Kelvin |
| Protection Rating | IP67 (Completely sealed) |
| Wire and Connections | 1×0.5 flexible wire with PVC coating, 2×0.75 waterproof connector |
Sturdy Metal Structure
The main body of this light tree is made of 2×2 box sections and 6 and 10 mm wire rods, which have a total weight of about 400 kg. The selection of durable raw materials and precise design has made this product, in addition to its beauty, responsive to the needs of urban and organizational projects in terms of durability and lifespan. Depending on the installation site and project conditions, this structure has the capability for customization and adaptation.
Lighting System with Needle String Lights
One of the main strengths of the Delsa Light Tree is the use of 360 meters of DC needle string lights, designed in several sections including one 50-meter string, six 35-meter strings, and four 25-meter strings. These strings operate with a 24-volt input voltage and use 1×0.5 flexible wire with PVC coating, which is resistant to sunlight and has high safety against electric shock and fire.
The lighting of the Delsa Light Tree is designed based on high-quality LED strings that, while creating uniform illumination, have very desirable durability and luminous efficacy. This lighting system, by producing a warm and pleasant sunlight-like light, provides a relaxing and beautiful atmosphere in public environments. Also, due to high efficiency and low energy consumption, this lighting will be economical and durable in the long run.
The Delsa light tree’s lighting system is designed using DC needle strings, which offer a combination of high performance and long durability. These strings, with a durable design and IP67 standard, create uniform and pleasant lighting and are ideal for urban and open environments.
The main features of the Delsa needle string are:
- Total Length: 360 meters (including 1 50-meter string, 6 35-meter strings, and 4 25-meter strings)
- Input Voltage: 24 Volts DC with optimal energy consumption
- Durable Wire: 1×0.5 flexible wire with PVC coating, resistant to sunlight and the risk of electric shock
- Light Source: Zenered Epistar LED with 49 units per 5 meters
- Light Color: Warm White 2400–2700 Kelvin, warm and pleasant light
- Protection Rating: IP67, completely waterproof and resistant to environmental conditions
- Connections: 2×0.75 waterproof connector for easy and safe installation
- Special Feature: Modular design and the ability to add strings one after another without needing to change the entire system
This combination of high quality, safety, and stable performance has made the Delsa needle string a reliable choice for urban lighting projects and open spaces.
Resistance and Efficiency
The Delsa Light Tree, with a protection rating of IP67, is completely sealed and resistant to rainfall and various environmental conditions. The use of 2×0.75 waterproof connectors allows the connection of the strings to be done safely, easily, and without concern for reverse connection. Also, the modular design of this system provides the possibility of increasing or changing the lighting sections and creates high flexibility in various projects.
Applications and Advantages
The Delsa Light Tree, due to its impressive design and high resistance, has numerous applications and advantages:
- Urban Use: Suitable for squares, boulevards, parks, and tourist areas with the aim of creating a different and lasting effect in the urban environment.
- Commercial and Recreational Use: Ideal for commercial centers, recreational and cultural complexes to attract audiences and create a memorable atmosphere.
- Low Energy Consumption: The optimal design of the strings leads to savings in electricity consumption and high energy efficiency.
- High Safety and Durability: Resistance to environmental conditions and protection against potential hazards ensure the safety of use.
- Easy Installation and Maintenance: Modular design and simple connections allow for quick installation and changing or increasing the strings.
- Economic Savings: Due to its long lifespan and continuous efficiency, it is a cost-effective choice for small and large projects.
The Delsa Light Tree is a combination of design art, structural engineering, and modern lighting technology. This light element is known not only as a piece of lighting equipment but also as a symbol of beauty and urban identity. Structural strength, high quality of the needle strings, resistance to environmental conditions, and low energy consumption are all features that have made Delsa a reliable and lasting choice for urban, commercial, and recreational projects. To experience different lighting and enhance the appearance of your environment, contact the experts at Erfan Sanat Esfahan Company now and install the Delsa light tree in your project. Our expert consultation and customized solutions will guarantee the success and beauty of your project.
